119B机械密封
运行参数: Operating limits
规 格: 33-100 mm Specification : 33-100 mm
压 力:≤2.5Mpa Pressure : ≤2.5Mpa
温 度:-20-220℃ Temperatuee : -20-220℃
线 速 度:≤ 15m/s Lieear speed : ≤ 15m/s
轴向窜动量:±1 mm Axial movement : ±1 mm
结构特点:单端面 平衡性 任意旋向 多弹簧
推荐用途:119B型密封为内装单端面多弹簧,靠销钉传动、密封可靠。广泛用于各种腐蚀性介质。

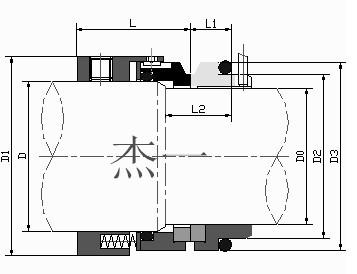

D0 | D | D1 | D2 | D3 | L1 | L2 | L |
33 | 38 | 55 | 42 | 48 | 11.5 | 20 | 50 |
35 | 40 | 57 | 44 | 50 | 11.5 | 20 | 50 |
38 | 43 | 60 | 49 | 56 | 14 | 23 | 52.5 |
40 | 45 | 62 | 51 | 58 | 14 | 23 | 52.5 |
43 | 48 | 65 | 54 | 61 | 14 | 23 | 52.5 |
45 | 50 | 67 | 56 | 63 | 14 | 23 | 52.5 |
48 | 53 | 70 | 59 | 66 | 14 | 23 | 52.5 |
50 | 55 | 72 | 62 | 70 | 15 | 25 | 57.5 |
53 | 58 | 79 | 65 | 73 | 15 | 25 | 57.5 |
55 | 60 | 81 | 67 | 75 | 15 | 25 | 57.5 |
60 | 65 | 86 | 72 | 80 | 15 | 25 | 62.5 |
65 | 70 | 91 | 77 | 85 | 15 | 25 | 62.5 |
70 | 75 | 99 | 83 | 92 | 18 | 28 | 70 |
75 | 80 | 104 | 88 | 97 | 18 | 28 | 70 |
80 | 85 | 109 | 95 | 105 | 18.2 | 28 | 70 |
85 | 90 | 114 | 100 | 110 | 18.2 | 28 | 75 |
90 | 95 | 119 | 105 | 115 | 18.2 | 28 | 75 |
95 | 100 | 124 | 110 | 120 | 17.2 | 28 | 75 |
100 | 105 | 129 | 115 | 125 | 17.2 | 28 | 75 |
